Products:

Heat Pumps for Pools Heat Pumps XHP

Heat pump is the most efficient way of heating water in your swimming pool. The pump collects warmth from the ambient air and transfers it into the pool. At the same time, the coldness from the water is channeled out into the environment.

Questions? Talk To Us!

We are here to help you to choose the solution that fits your needs.

Contact Us

Basic Information

The use of a heat pump is the most effective way of heating water in your swimming pool. The pump collects warmth from the ambient air and transfers it to the water in the pool. At the same time, the coldness from the water is channelled out to the environment. The heat pump will significantly prolong your swimming season. And that is not all. Our XHP heat pump works both ways - in the hot summer days it can even chill your water for a perfectly refreshing feeling.

  • Great performance if combined with a swimming pool enclosure
  • Ecological operation
  • Can be used in combination with a salt chlorinator as well
  • Digitally controlled
  • Temperature range from 8 to 42 degrees Celsius
  • Frost de luxe cooling mode
  • Longer swimming season
  • Huge energy and money savings during the season

Technical details:

  • Certificates: TUC, ITC, RohS
  • Titanium HITACHE heat exchanger
  • COP 6.25
  • Save up to 60% compared to regular electric heating
  • New generation of refrigerator - R410A
  • Low operational costs
  • Suitable for pools up to 90m3

Details

XHP details

XHP Cover

  • variable positioning of the XHP cover according to the dimensions of the heat pump - for XHP 40-200
  • width of attachment: 20 cm - 60 cm
  • length of attachment: 93 cm - 110 cm
  • construction with Silver ELOX surface treatment
  • roofing material: 4 mm clear polycarbonate
  • packing (cm) : 1 carton 75 W x 118 L x 10 H
  • weight: 7 kg

Technical information

Model XHP 60 XHP 100 XHP 140 XHP 160 XHP 200
*Capacity at 25 °C/Water 27 °C
Heat output(kW) 5 9 12 15 18
Power Consumption (kW) 0,8 1,44 1,92 1,92 2,88
Coefficient of performance 6,25 6,25 6,25 6,25 6,25
*Capacity at 15 °C/Water 27 °C
Heat output(kW) 3,65 6,57 9 9,45 13,5
Power Consumption (kW) 0,81 1,42 1,92 1,92 2,72
Coefficient of performance 4,5 4,5 4,6 4,9 4,89
Voltage (V/50Hz) 220-240 220-240 220-240 220-240 220-240
Rated Current (A) 4,5 7,1 9,5 9,5 14,2
Advised Fuse (A) 10 20 25 25 35
* Water data
Advised pool volume (m3) 0-20 25-40 35-60 40-65 60-90
Advised water flux (m3/h) 2.5~3.2 2.8~5.6 3.5~7.1 4~7.9 5.6~11.2
Water pipe in-out spec (mm) 50 50 50 50 50
* General Data
Compressor rotary/R410a rotary/R410a rotary/R410a rotary/R410a rotary/R410a
Air flow horizontal horizontal horizontal horizontal horizontal
Condenser titanium in PVC titanium in PVC titanium in PVC titanium in PVC titanium in PVC
Cooling function
Noise at 10m (dB(A)) 35 36 37 42 42
Noise at 1m (dB(A)) 44 45 46 51 51
Water pressure (kPa) 12 15 15 15 16
Refrigerant (g) 450 900 1100 1300 1700
* Net Dimension
Net size (mm) 930/350/550 930/350/550 1000/360/620 1045/410/695 1045/410/695
Net size (mm) 935/360/545 935/360/545 1005/360/620 1045/410/695 1045/410/850
Net weight (kg) 44 51 61 72 100
Packing Dimension (mm) 1060/380/590 1060/380/590 1120/380/660 1140/430/740 1140/430/990
Gross weight (kg) 47 55 65 76 110

XHP sizes

Size XHP 60 XHP 100 XHP 140 XHP 160 XHP 200
A (mm) 330 330 330 410 380
B (mm) 650 650 655 690 690
C (mm) 286 286 306 366 366
D (mm) 360 360 360 410 410
E (mm) 935 935 1005 1046 1045
F (mm) 230 230 340 390 500
G (mm) 82 82 82 82 83
H (mm) 545 545 620 695 850



Recommendation

Recommended accessories

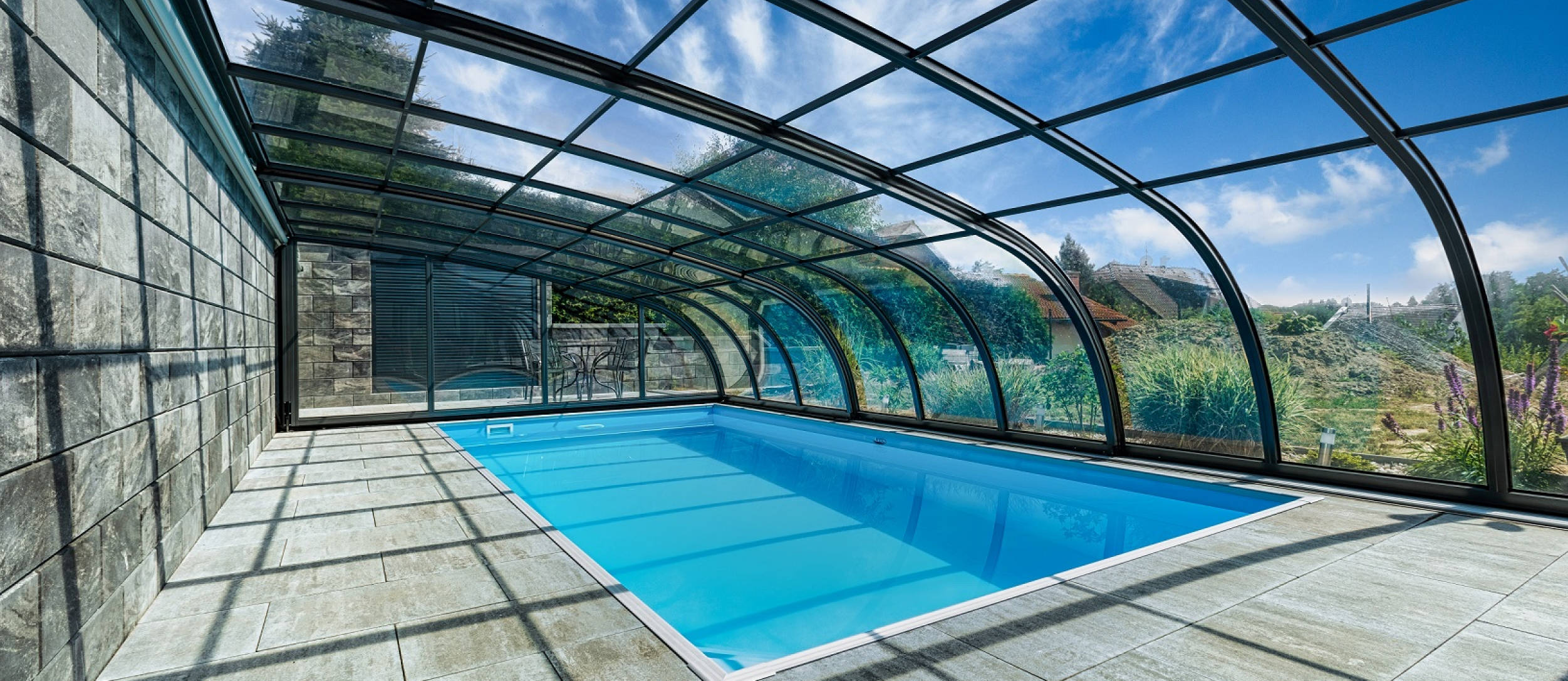

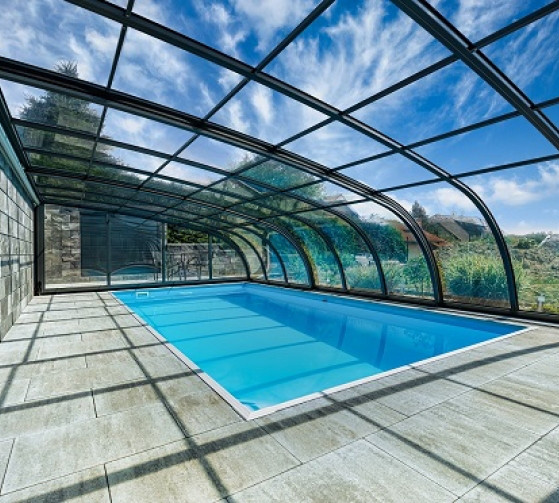

Pool enclosure

for the most cost-effective swimming pool heating.

XHP roof

Protect your XHP pump against weather effects.

Recommendations

Place the heat pump sufficiently far from other objects (e.g. walls or buildings). It is the only way to guarantee maximum efficiency. Connect the heat pump all the way into the filtration circuit, as close to the pool jets as possible, to avoid heat losses before the warm water reaches the swimming pool.
